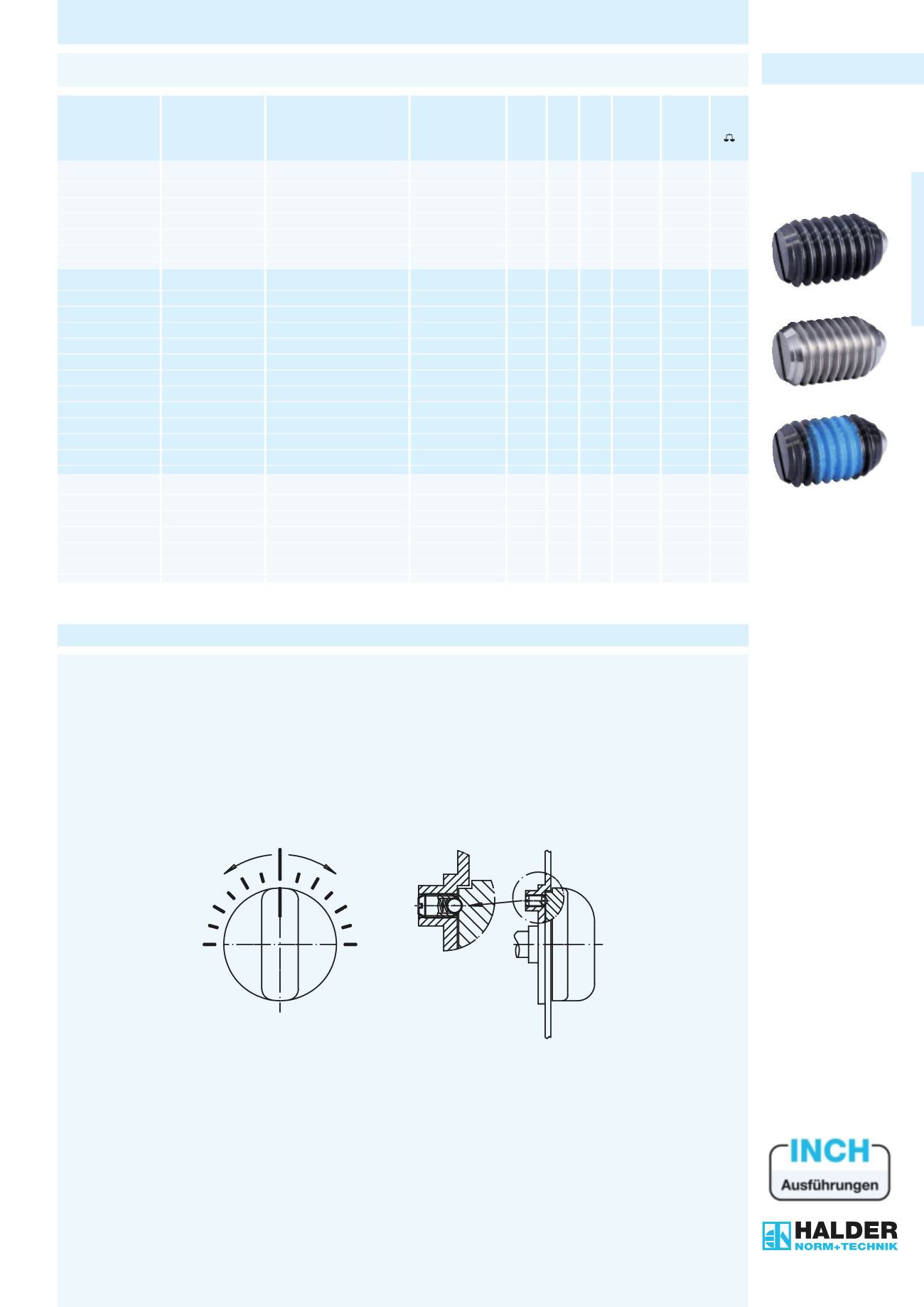

EH 2B050.
Federnde
Druckstücke
mit Kugel und Schlitz
UNC / UNF
Fortsetzung von vorheriger Seite
Best.-Nr.
ohne
Gewinde-
sicherung
Best.-Nr.
mit
Gewinde-
sicherung
Ausführung
d
1
*
l*
s* d
2
*
Feder-
kraft
F
1
lbs.
»
**
Feder-
kraft
F
2
lbs.
»
** oz.
2B050.0110 2B050.0310 rostfreier Stahl,
leichte Federkraft
UNF 10-32 33/64 .025 3/32 0.9
1.5 0.048
2B050.0112 2B050.0312
UNC 1/4-20 17/32 .035 1/8 2.1
4.0 0.071
2B050.0116 2B050.0316
UNC 5/16-18 37/64 .040 5/32 2.0
4.6 0.123
2B050.0118 2B050.0318
UNC 3/8-16 5/8 .048 3/16 2.5
5.0 0.190
2B050.0120 2B050.0320
UNC 1/2-13 3/4 .072 9/32 3.0
6.0 0.397
2B050.0122 2B050.0322
UNC 5/8-11 63/64 .096 3/8 4.5
9.0 0.790
2B050.0131 2B050.0331 rostfreier Stahl,
Standard-Federkraft
UNF 4-48 3/16 .020 1/16 0.1
0.5 0.005
2B050.0132 2B050.0332
UNC 5-40 1/4 .020 1/16 0.3
0.8 0.015
2B050.0133 2B050.0333
UNC 6-32 5/16 .023 5/64 0.5
1.0 0.018
2B050.0135 2B050.0335
UNF 6-40 5/16 .023 5/64 0.5
1.0 0.019
2B050.0136 2B050.0336
UNC 8-32 11/32 .025 3/32 0.8
1.3 0.026
2B050.0138 2B050.0338
UNF 8-36 11/32 .025 3/32 0.8
1.3 0.026
2B050.0140 2B050.0340
UNF 10-32 33/64 .025 3/32 2.0
3.1 0.049
2B050.0142 2B050.0342
UNC 1/4-20 17/32 .035 1/8 3.8
6.8 0.072
2B050.0146 2B050.0346
UNC 5/16-18 37/64 .040 5/32 4.0
8.4 0.123
2B050.0148 2B050.0348
UNC 3/8-16 5/8 .048 3/16 5.0 10.3 0.198
2B050.0150 2B050.0350
UNC 1/2-13 3/4 .072 9/32 6.0 12.0 0.396
2B050.0152 2B050.0352
UNC 5/8-11 63/64 .096 3/8 9.0 18.0 0.813
2B050.0170 2B050.0370 rostfreier Stahl,
starke Federkraft
UNF 10-32 33/64 .025 3/32 3.3
4.8 0.046
2B050.0172 2B050.0372
UNC 1/4-20 17/32 .035 1/8 5.6
8.6 0.074
2B050.0176 2B050.0376
UNC 5/16-18 37/64 .040 5/32 6.0 11.1 0.123
2B050.0178 2B050.0378
UNC 3/8-16 5/8 .048 3/16 7.5 15.1 0.197
2B050.0180 2B050.0380
UNC 1/2-13 3/4 .072 9/32 6.0 24.0 0.409
2B050.0182 2B050.0382
UNC 5/8-11 63/64 .096 3/8 7.0 40.0 0.825
* Alle Abmessungen sind in Zoll (inch) angegeben.
** statistischer Mittelwert
