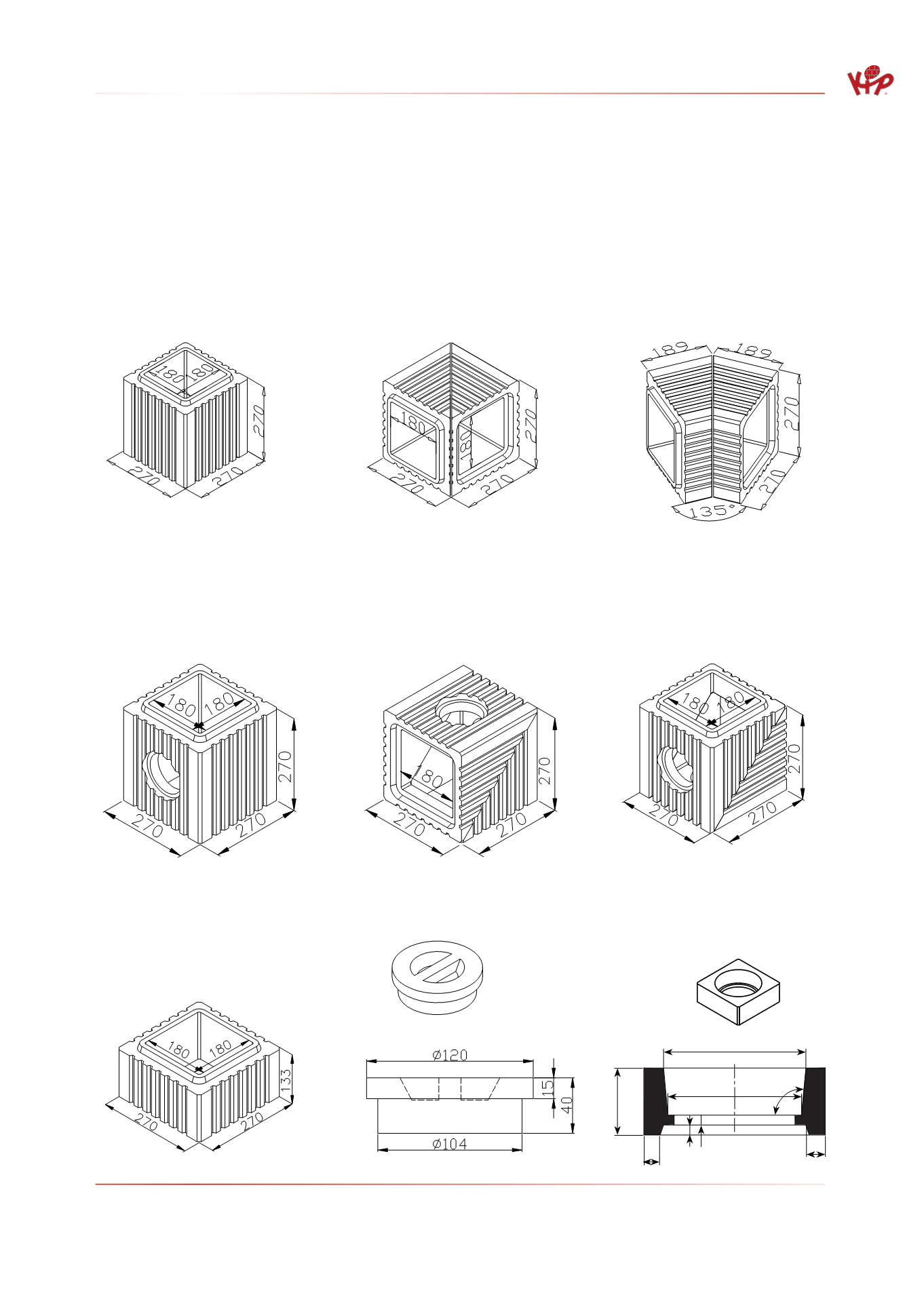

Šamotni kanali pero/utor
Št. art.: 2819, HBO+ Št. art.: 2823, HBO+ Št. art.: 2822, HBO+
Št. art.: 2660, HSM Št. art.: 2661, HSM Št. art.: 2662, HSM
kanal utor/pero vogalnik 90°, dvodelen vogalnik 135°, dvodelen
notranjemere 180/180mm notranjemere 180/180mm notranjemere 180/180mm
Št. art.: 3160, HBO+
Št. art.: 3158, HSM
kanal z odprtino za čiščenje
ø 110mm, vogalnik 90°,
dvodelni, pero
notranjemere 180/180mm
Št. art.: 2821, HBO+
Št. art.: 3120, HSM
kanal pero/utor, polovični
notranjemere 180/180mm
Št. art.: 3258, HKC
priključek za kovinsko
dimovodno cev ø 180mm
