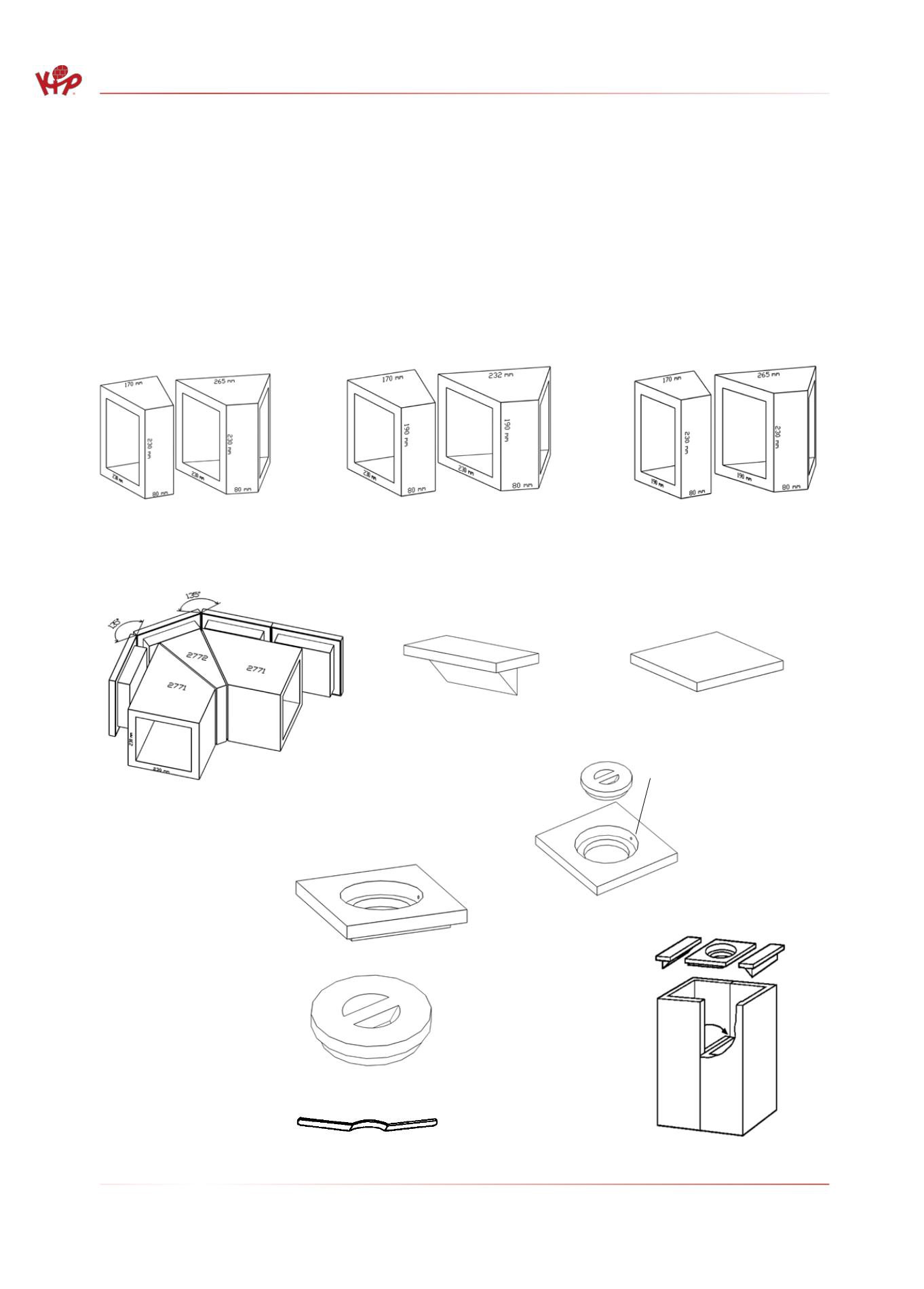

Šamotni kanali – klasični sistem
Šamotni kanali, vogalniki za spremembo smeri
Št. art.: 185/187, HBO+ Št. art.: 188/189, HBO+ Št. art.: 190/191, HBO+
notranjemere notranjemere notranjemere
180/180mm 180/140mm 140/180mm
Št. art.: 2771/2772, HBO+
notranji presek 180/180mm
Št. art.: 150 (180/180)
Št. art.: 184 (140/180)
Št. art.: 2383 (220/180)
klin za zavoj kanala
Št. art.: 151 (230x230x20)
pokrov kanala
brez čistilne luknje
Priključek za kovinskodimno cev
št.art.: 155 ø 140mm
št.art.: 156 ø 160mm
št.art.: 157 ø 180mm
Čistilni kos
št.art.: 153
sponka
št.art.: 2316
Cinder Blocks
tandardSystemFlueCinder Blocks
Blocks, Angles for DirectionChanges
/ 187 Art. No. 188 / 189 Art. No. 190 / 191
Section Inner Cross-Section Inner Cross-Section
180 / 140mm 140 / 180mm
/ 2772 BurningStrip for BurningCentrepiece
ection 180 / 180mm (Inner Cross-Section) without hole (LxWxD inmm)
Art. No.: 150 (180/180) Art. No.: 151 (230x230x20)
184 (180/140) 2726 (307x225x20)
2383 (220/180)
Collet for ClaspCleanout OpeningCover Clasp
∅ 140mm Art. No.: 153 Art. No.: 2316
∅ 160mm
∅ 180mm
port Brick SquareFlush-MountedCover
0 (250x250x30) Art. No.: 2849 (120x120x30mm)
1 (250x250x40)
150 155 150
147
Cinder Blocks
StandardSystemFlueCinder Blocks
Wolfshöher Tonwerke
GmbH&Co. KG
Wolfshöhe 2
D-91233NeunkirchenamSand
Telephone: +49(0)9153/9262-0
Fax.: +49(0)9153/4342
Email:info@wolfshoehe.de
Web www.wolfshoehe.de
Versi on:
17.06.2006
FlueCinder Blocks, Angles for DirectionChanges
Art. No-. 185 / 187 Art. No. 188 / 189 Art. No. 190 / 191
Inner Cross-Section Inner Cross-Section Inner Cross-Section
180 / 180mm 180 / 140mm 140 / 180mm
Art. No. 2771 / 2772 BurningStrip for BurningCentrepiece
Inner Cross-Section 180 / 180mm (Inner Cross-Section) without hole (LxWxD inmm)
Art. No.: 150 (180/180) Art. No.: 151 (230x230x20)
184 (180/140) 2726 (307x225x20)
2383 (220/180)
Smoke-PipeCollet for ClaspCleanout OpeningCover Clasp
Art. No. 155 ∅ 140mm Art. No.: 153 Art. No.: 2316
Art. No.: 156 ∅ 160mm
Art. No. 157 ∅ 180mm
Angular Support Brick SquareFlush-MountedCover
Art. No.: 2850 (250x250x30) Art. No.: 2849 (120x120x30mm)
Art. No.: 2851 (250x250x40)
Izrez za sponko.
