PC.ZX105E
FOG ECO 05
PC.ZX101E
FOG ECO 1
PC.ZX103E
FOG ECO 3
a
b
c
Code
Model
* No.
nozzles
Pressure Flow rate
Power absorbed
Dimensions
W x L x H
Weight
11
60 bar
850 psi
0,5 l/min
0.13 USGpm
200 W (1x230 V-50 Hz)
41 x 26 x 26 cm
16.2” x 10.3” x 10.3”
gr.
15000
529.1
22
60 bar
850 psi
0,9 l/min
0.24 USGpm
200 W (1x230 V-50 Hz)
41 x 26 x 26 cm
16.2” x 10.3” x 10.3”
gr.
15000
529.1
70
60 bar
850 psi
3 l/min
0.80 USGpm
750 W (1x230 V-50 Hz)
55 x 35 x 32 cm
21.7” x 13.8” x 12.6”
gr.
32000
1,129.1
* The highest number of nozzles has been calculated by using a nozzle with flow rate 15 (0,042 l/min-0.012 USGpm) at 60 bar-850 psi.
Technical data

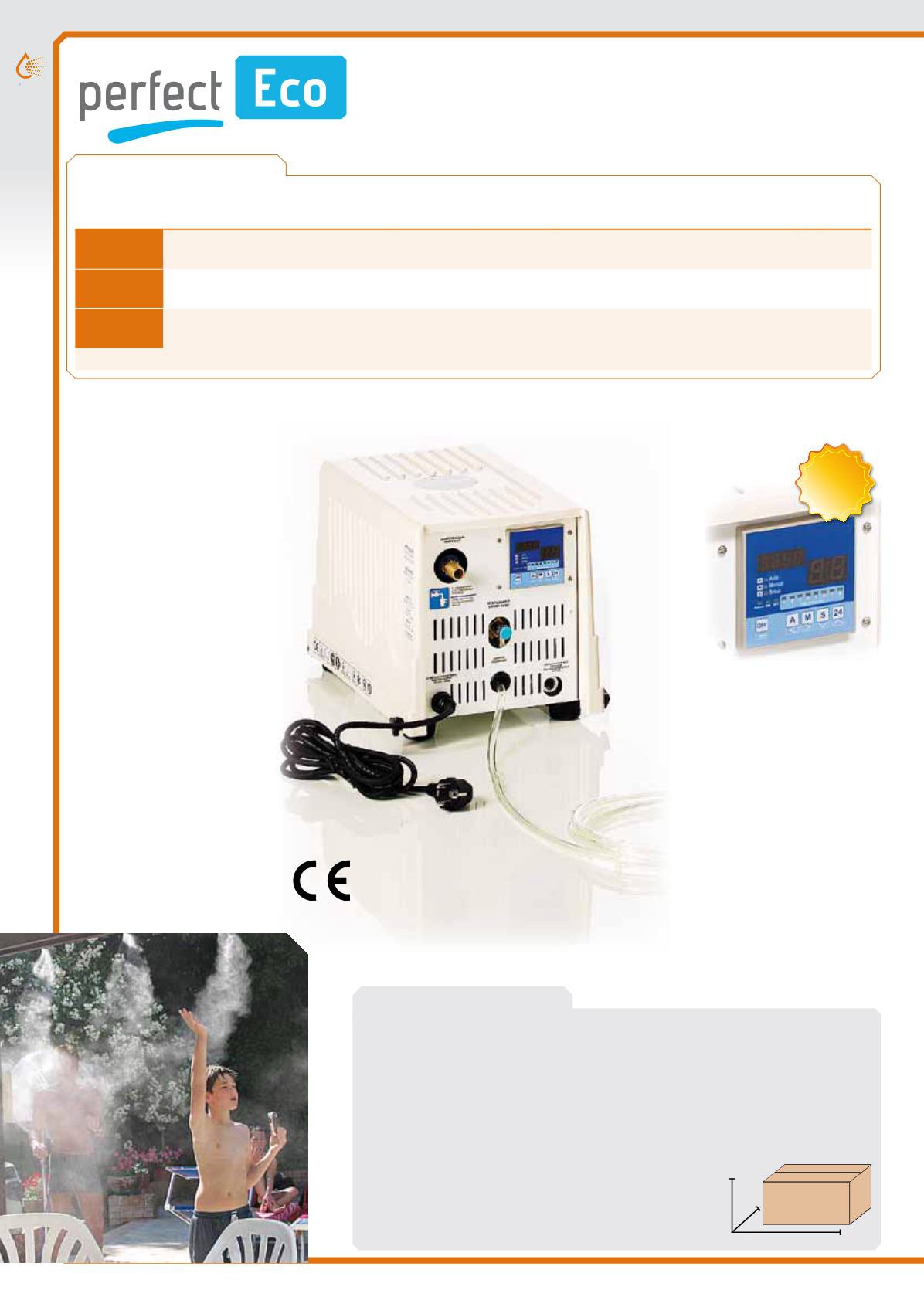

Fog Eco module
•
Frame
made of galvanized plate with
plastic cover.
•
Motor-pump
, 1420 Rpm, 230 V-50 Hz
with axial pump 2 plungers
•
Unloader valve
.
•
Thermal protection
against current surge
•
Integrated digital timer,
sets the duty cycle,
manual and automatic working, 24 hours
scheduling.
•
L.p. pressure switch
for lack of water
•
Anti-drip Electronic System
, inlet water
•
Cleanable water filter
Technical features
• Packaging
dimensions:
a
85 cm
b
60 cm
c
95 cm
Detail of the duty cycle timer
integrated in the fog module
ECO
Sets:
• Duty cycle 24 hours
scheduling
• Manual and automatic
function
• Alarm for lack of water.
Simple
and effective.
The most effective
solution for cooling,
creating special effects,
humification,
dust suppression
and odour control
in small and medium
sized areas
Fogging system
60 bar-850 psi
fog module Eco
from 11 to 70
nozzles
Digital
integrated
timer
